Description

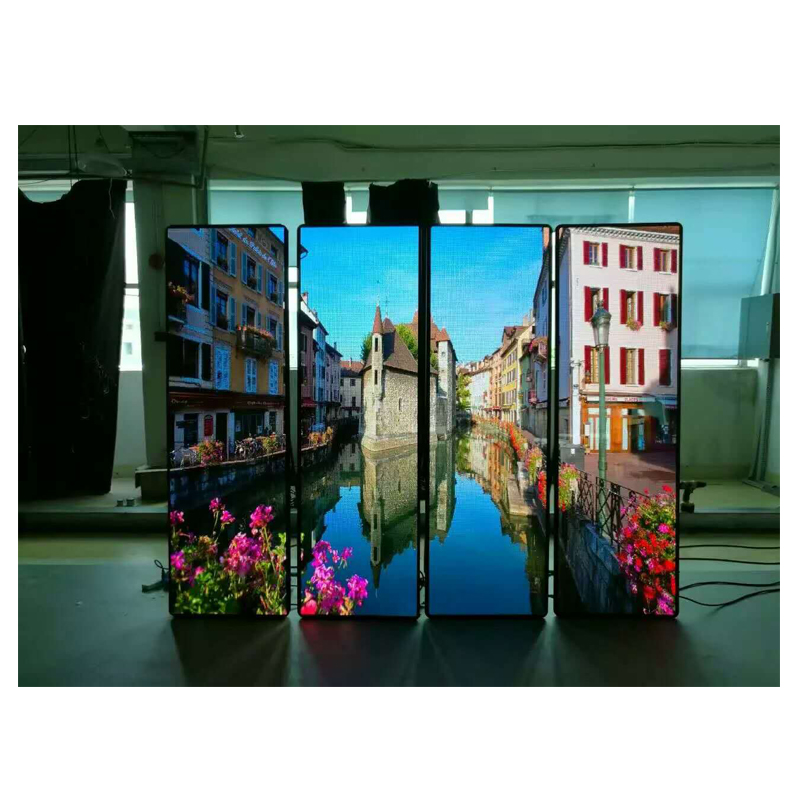

Full-Colour Indoor Shop Screen P2.5 led display
Module:
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 160*80mm/160*160mm |
| Module weight | 219g |
| Module resolution | 64*32 dots/64*64mm |
| Module quantity per cabinet | 8pcs |
Cabinet:
| Cabinet size | 480*1600mm |
| Cabinet material | Steel cabinet |
| Cabinet weight | 9.73kg+/-0.05kg |
| Cabinet resolution | 192*640dots |
| Ingress protection | Front/Rear IP40 |
Screen:
| Pixel density | 600000dots/m² |
| Brightness | ≥2000cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 400 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colours | 16.7millon colours |
| Grey level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥60Hz |
| MTBF | ≥5000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System:
| Video signal (with video processor) | AV, S-video, VGA, DVI, YPbPr, HDMI, SDI, DP |
| Colour temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
